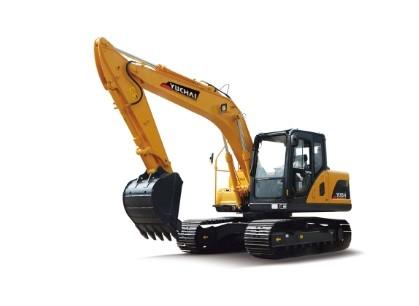

Yuchai YC135 Excavator
Powerful Yuchai engine
YC135-9 is equipped with an engine independently developed by Yuchai, which has strong torque, sufficient power reserve, low fuel consumption, fast response and better fuel efficiency.
International brand hydraulic system
The tonality of compound movements is smooth. The hydraulic valve is stable, efficient and reliable.
Comfortable driving experience
The YC135-9 features a spacious cab and offers a broad driving vision. Equipped with suspension shock-absorbing seats, the year-on-year efficiency of air conditioning and refrigeration has increased by 18%, contributing to an overall comfortable operating experience.
YUCHAI Little Dig
YUCHAI Heavy Industry co., Ltd. was founded in 1989. It is the first excavator enterprise in China to produce micro-excavators and sell them to the world. It is the largest small excavator production and export base in China and a state-level high-tech enterprise.
More than 30 years of innovation and development, to ensure high quality customers!
Not afraid of harsh environment
Yuchai excavator YC135-9 has excellent performance, stable hydraulic system and Yuchai engine, so that Yuchai excavator can cope with various working conditions, including a series of tests of high temperature and high humidity, high strength in plateau, low temperature and severe cold environment.
Brand new cab
YC135-9 has a spacious cab and a wide driving vision; Full-color large screen, higher resolution, better color saturation, larger screen and easier recognition. With suspension shock-absorbing seat, it is suitable for different bodies or sitting positions to effectively relieve fatigue.
Full pilot control
The driving experience is more comfortable and the excavator action is more smooth
Sales champion model, excavator widely praised by customers.
YC135-9 is a new-generation excavator product newly upgraded by Yuchai Heavy Industry, which has a wide range of working conditions. Its outstanding digging performance is suitable for high-strength working conditions such as digging and crushing soil and rocks, and its moderate tonnage is also suitable for flexible operations such as urban construction and rural reconstruction. It is the "king of all-around" of the same class.
Easy maintenance
While the whole hood is kept, two openable side doors are added, and the three filters are centralized, so that all maintenance and inspection points are within reach.
All the main hydraulic hoses are arranged in the direction of the working device, which improves the convenience of detection and maintenance.
Specifications
| Excavator Model | YC135 | |
| Basic parameter | ||
| Machine weight | kg | 13800 / 14740 (with dozer blade) |
| Bucket capacity | m³ | 0.52 |
| Width of bucket | mm | 934 |
| Performance parameter | ||
| Engine model | Yuchai 4DK / Cummins QSF 3.8 | |
| Engine power | kW/rpm | 86/2200 |
| Max. Gradeability | 35° | |
| Max. digging force of arm | kN | 75.8 |
| Max. digging force of bucket | kN | 106 |
| Traveling speed | km/h | 5.0/3.1 |
| Max. hauling force | kN | 121 |
| Slewing speed of platform | rpm | 11 |
| Operating parameter | ||
| Max. digging height | mm | 8335 |
| Max. digging depth | mm | 5257 |
| Max. digging radius | mm | 8070 |
| Max. digging radius on ground level | mm | 7933 |
| Max. dumping height | mm | 5896 |
| Min. slewing radius | mm | 2561 |
| Max. vertical digging depth | mm | 4380 |
| Max. dozer balde heigh | mm | -- |
| Mzx. dozer blade depth | mm | -- |
| Transportation dimension | ||
| Overall length | mm | 7784 |
| Overall width | mm | 2600 |
| Overall height | mm | 2853 |
| Other Parameter | ||
| Width of undercarriage | mm | 2600 |
| Length of track | mm | 3695 |
| Width of track | mm | 500 / 600 |
| Height between undercarriage and ground | mm | 415 |
| Height between platform and ground | mm | 919 |
| Platform tail turning radius | mm | 2315 |
| Length to center of rollers | mm | 2950 |
| Fuel tank capacity | L | 270 |
| Hydraulic oil tank capacity | L | 105 |
| Track gauge | 2950 | |
| Working Pressure | Mpa | 34.3 |
| Ground Contact Pressure | kPa | -- |
| Arm length | mm | 2250 |
| Boom length | mm | 4600 |
| Steering head angle | ||
| Flow rate | L/Min | 2×132.7 |
|
|
